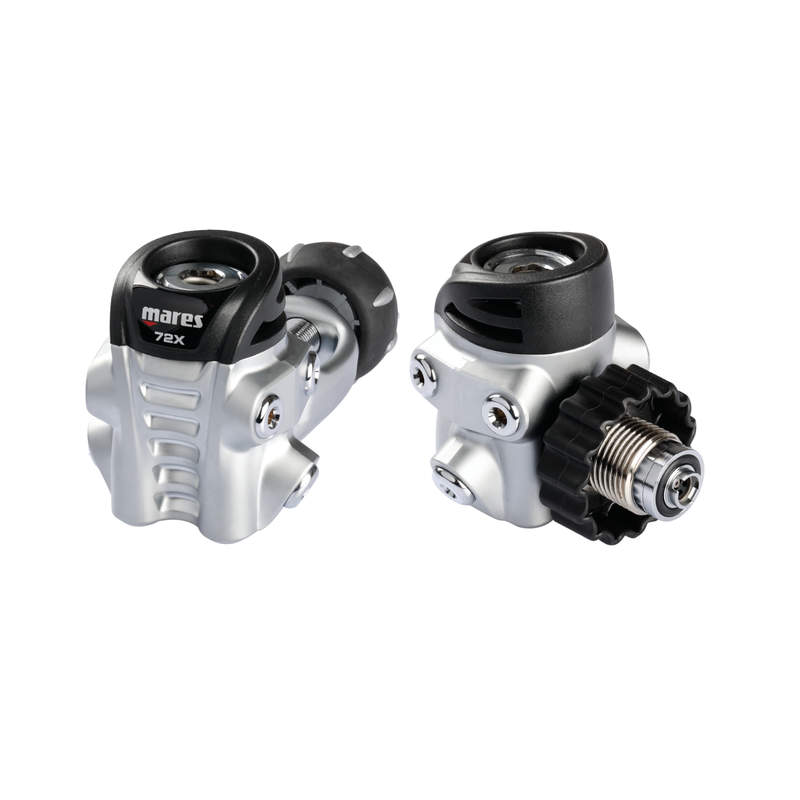

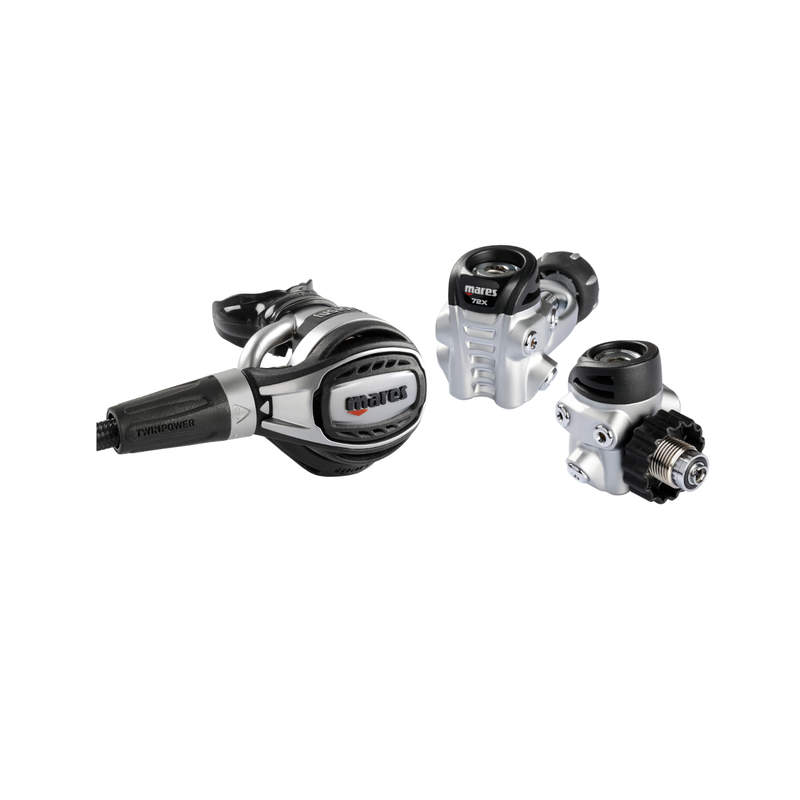

REGULATOR FUSION 72X

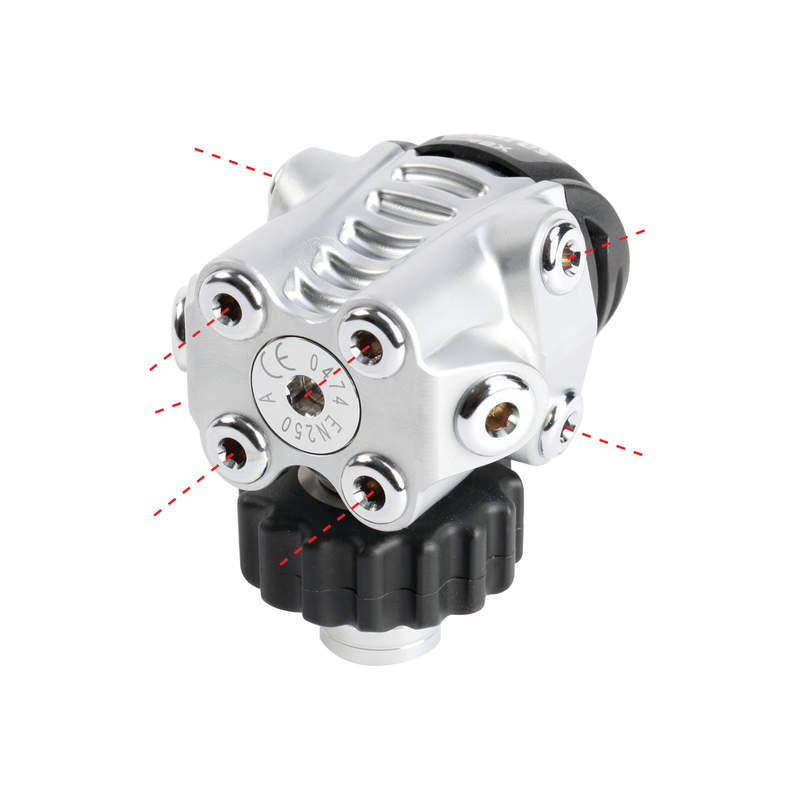

•  4 VERTICAL AND 4 RADIAL LP PORTS (PAT. PENDING)
•  IDEAL FOR ALL TECH AND RECREATIONAL DIVING CONFIGURATIONS
•  NATURAL DFC ON ALL LP PORTS
•  PRE-ORIENTED HP PORTS
•  AST - 1ST STAGE DRY SYSTEM
•  PEARL CHROME FINISH
•  COMPACT DIMENSIONS

•  TWIN POWER SYSTEM

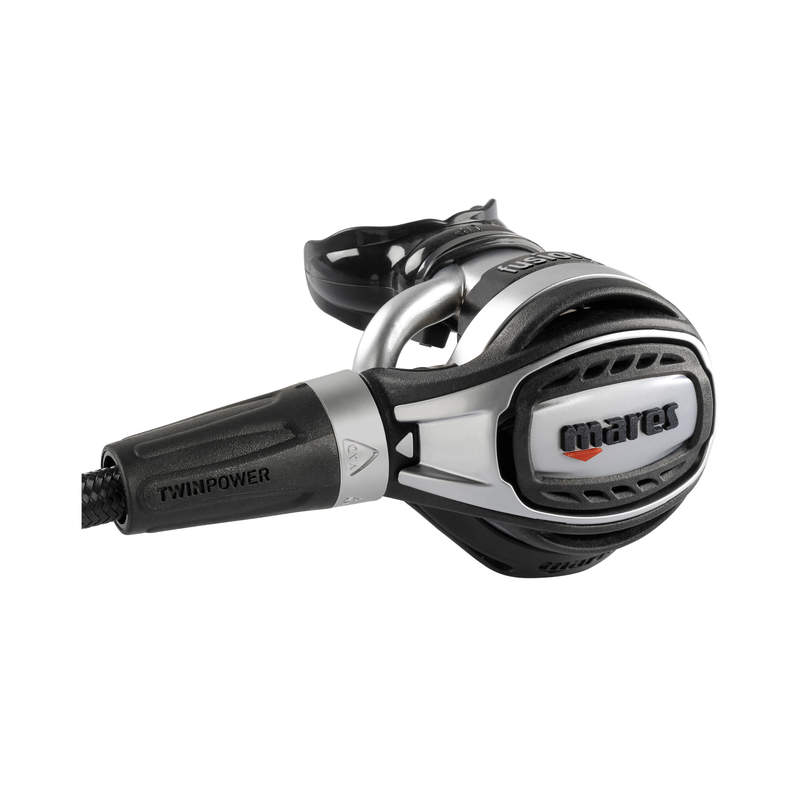

•  METAL 2ND STAGE WITH PEARL CHROME FINISH
•  HIGH AIR FLOW

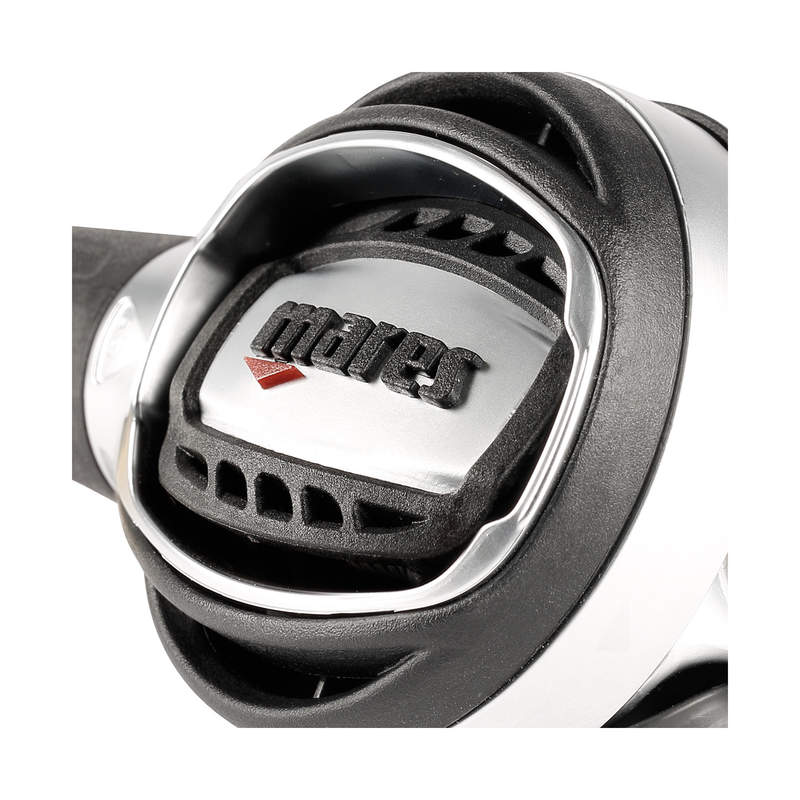

• WIDE PIVOTING PURGE BUTTON
•  SUPERFLEX LP HOSE

FACTS

Material

Metal Technology





First Stage

Balanced Diaphragm





HP Ports

2 HP 7/16" UNF





LP Ports

8 LP 7/16" UNF

TECHNOLOGY

Outstanding mechanical reliability and high thermal conductivity make our metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces also the dry mouth feeling during the dive.

Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.

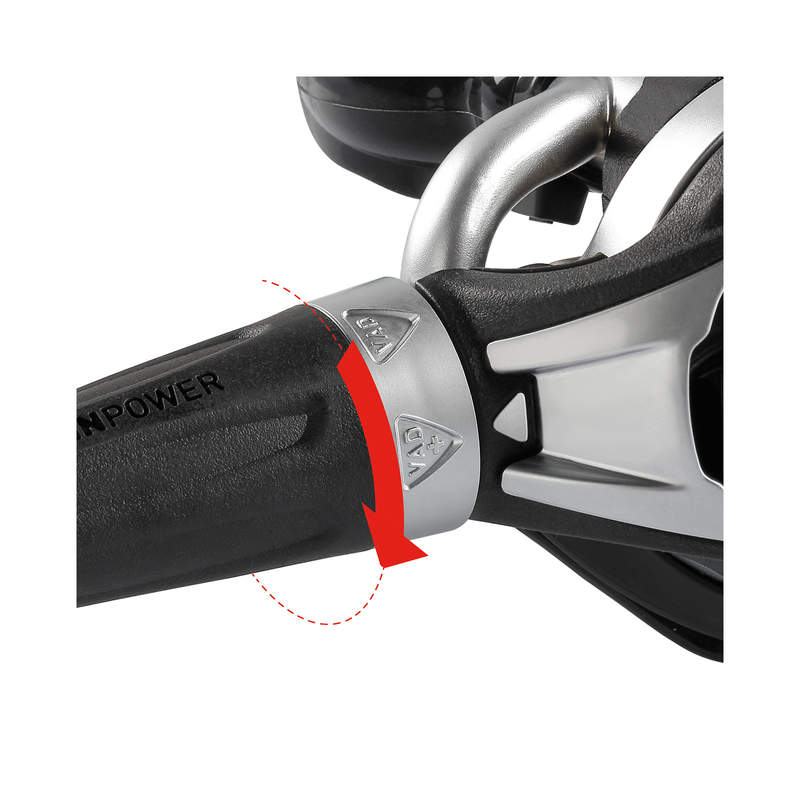

New, flow control manages the delivery rate of your gas, from natural breathing to power breathing. The former is the traditional way of breathing a Mares regulator, (VAD) while the latter (VAD+) provides an extra push when you need it.

The air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.

Extreme light weight and exceptional softness guarantee the maximum freedom of movement.

TECHNICAL SPECIFICATION

First stage weight INT

882g





First stage weight DIN 300

708g





Second stage weight

327g





Total weight INT

1345g





Total weight DIN300

1171g
